A Code Straight Molded M5 Waterproof Connector PA GF Male

10
MOQ
negotiable
Price
A Code Straight Molded M5 Waterproof Connector PA GF Male
Features Gallery Product Description Request A Quote
Features
Specifications
Pin Number: 3pin 4pin
Waterproof Degree: Ip67/68
Cable Diameter: 3.5mm~5mm
Rated Current: 1.5A
Jacket Material: PVC/PUR
Rated Voltage: 60V
Temperature Range: -40℃~+80℃
Mating Endurance: > 500 Cycle
Insulation Resistance:: ≥100MΩ
Connector Insert: PA+GF
High Light:

Straight Molded M5 Waterproof Connector

,

A Code M5 Waterproof Connector

,

PA GF M5 Cable Connector

Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: m5 molded connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

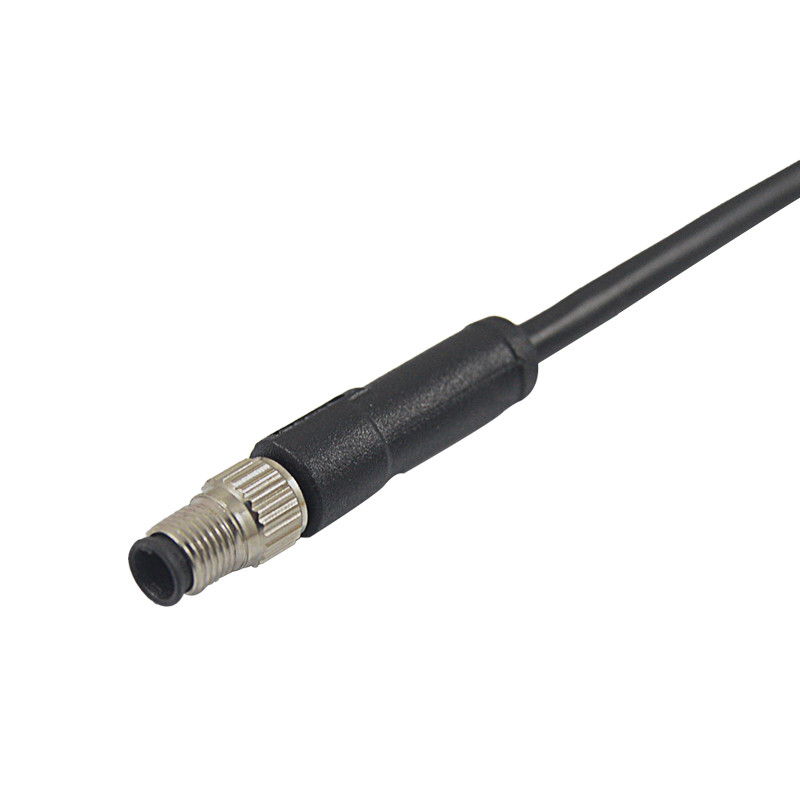

M5 A code male straight molded waterproof connector

A Code Straight Molded M5 Waterproof Connector PA GF Male 0

A Code Straight Molded M5 Waterproof Connector PA GF Male 1





A Code Straight Molded M5 Waterproof Connector PA GF Male 2
Product Description
M5 electronic components for applications such as machine condition monitoring, thickness gages, video probe for remote
inspection and soil moisture sensors.
M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60V, the max. current is 1 A.

A Code Straight Molded M5 Waterproof Connector PA GF Male 3
Features of M5 connector :
1. Connector M5 x 0.5 with screw interlock
2. Connector over-moulded on cable
3. Threaded ring with vibration resistance
4. IP67 protection
5. 3 and 4 -pole designs
6. 2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request
Product introduction
Product Name:
M8 connector 5pin 5pole B code female and male IP67 connector overmold M8 connector
model number:M8-A-PS


serIes:M8 Connector
Core number:3,4,5,6,8Core
Authentication:CE,RoHS
waterproof:IP67/IP68
