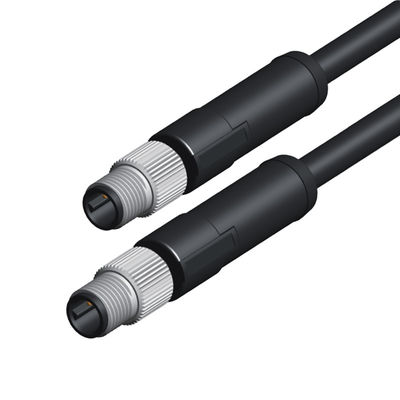

M5 A code 3pin 4pin male straight to male straight molded cable.
The M5 connectors provide 3 and 4 position cable cordsets and panel mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.
| General Infomation | ||||
| Standard | IEC 61076-2-105 | Insulation Resistance | ≥100MΩ | |
| Ambient Temperature | -25℃~+90℃/-20/- 40℃~+80℃ | Contact Resistance | ≤5mΩ | |
| Connector Insert | TPU/PA | Shielding | Unavailable | |
| Connector Contacts | Brass with Gold Plated | Seal/O-ring | Epoxy resin/FKM | |
| Coupling Nut/Screw | Brass with Nickel Plated | Mating Endurance | >500 cycles | |
| IP Rating | IP67/68/IP69K in locked condition | Certificate | ULS/CE/ROHS/IP67/REACH/IP68 | |
