Male Straight 90 Degree M5 Cable Connector 3 Pin Molded Cable

10
MOQ
negotiable
Price
Male Straight 90 Degree M5 Cable Connector 3 Pin Molded Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Temperature: -40°C ~ + 80°C
Wire Gauge: 0.14mm2(AWG 26)
Insulation Resistance: ≥100 MΩ
Contact Resistance: ≤6mΩ
Contacts Plating: Au(Gold)
O-ring: FKM/Silicon O-Ring
Impulse Voltage: 500V
Pollution Degree: 3
Material: PA66
Application: Power
High Light:

90 Degree M5 Cable Connector

,

Male Straight M5 Cable Connector

,

Molded Cable M5 Waterproof Connector

Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: m5 molded cable
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

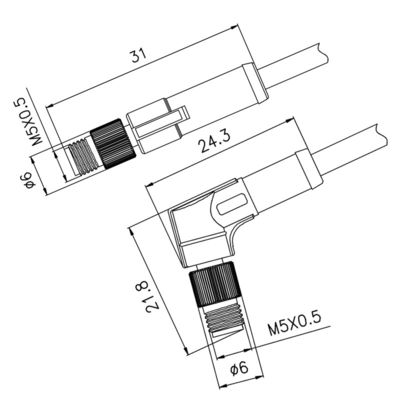

M5 Male Straight To Male 90degree A Code 3pin 4pin Connector Molded Cable

Male Straight 90 Degree M5 Cable Connector 3 Pin Molded Cable 0

Male Straight 90 Degree M5 Cable Connector 3 Pin Molded Cable 1

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.

Material:

Shell &insulated parts: High performance engineering plastics

Contact pin: Copper alloy(gold-plated,nickel-plated)

Main characteristics:

- Vibration resistance,impact resistance,stretching resistance

- plug/ unplug for more than 500 times

General Infomation
Standard IEC 61076-2-105 Insulation Resistance ≥100MΩ
Ambient Temperature -25℃~+90℃/-20/- 40℃~+80℃ Contact Resistance ≤5mΩ
Connector Insert TPU/PA Shielding Unavailable
Connector Contacts Brass with Gold Plated Seal/O-ring Epoxy resin/FKM
Coupling Nut/Screw Brass with Nickel Plated Mating Endurance >500 cycles
IP Rating IP67/68/IP69K in locked condition Certificate ULS/CE/ROHS/IP67/REACH/IP68
