60V M5 90 Degree Cable Connector 3 4 Pin Male Female CuZn

10
MOQ
negotiable
Price
60V M5 90 Degree Cable Connector 3 4 Pin Male Female CuZn
Features Gallery Product Description Request A Quote
Features
Specifications
Contact: Brass With Gold Plated
Sealing: Silica Gel
Voltage Rating: 60V
Contact Resistance: <10mΩ
Breakdown Voltage: 1.5KV/1minute
Temperature Rating: -25°C~+80°C
Waterproof Rating: IP67/ip68
Application: Power
High Light:

M5 90 Degree Cable Connector

,

60V 90 Degree Cable Connector

,

CuZn M5 Cable Connector
Basic Infomation
Place of Origin: Shen zhen，China
Brand Name: RIGOAL
Certification: CE，ROHS，ISO
Model Number: m5 molded cable
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

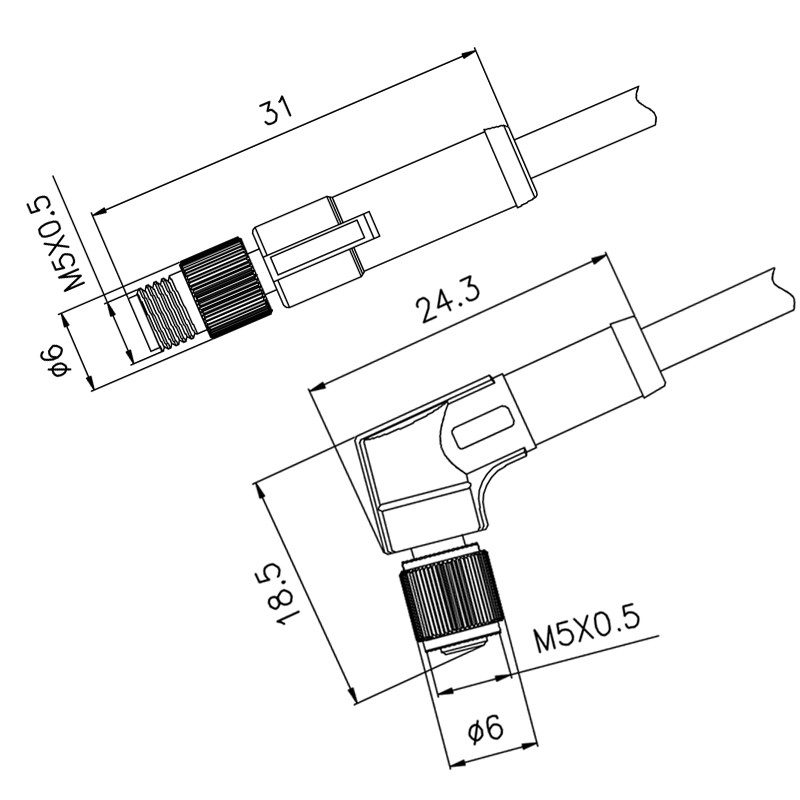

M5 male straight to female 90degree molded A code 3pin 4pin waterproof cable connector

60V M5 90 Degree Cable Connector 3 4 Pin Male Female CuZn 060V M5 90 Degree Cable Connector 3 4 Pin Male Female CuZn 1





The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.

Material:

Shell &insulated parts: High performance engineering plastics

Contact pin: Copper alloy(gold-plated,nickel-plated)

Main characteristics:

- Vibration resistance,impact resistance,stretching resistance

- plug/ unplug for more than 500 times

General Infomation
Standard IEC 61076-2-105 Insulation Resistance ≥100MΩ
Ambient Temperature -25℃~+90℃/-20/- 40℃~+80℃ Contact Resistance ≤5mΩ
Connector Insert TPU/PA Shielding Unavailable
Connector Contacts Brass with Gold Plated Seal/O-ring Epoxy resin/FKM
Coupling Nut/Screw Brass with Nickel Plated Mating Endurance >500 cycles
IP Rating IP67/68/IP69K in locked condition Certificate ULS/CE/ROHS/IP67/REACH/IP68
