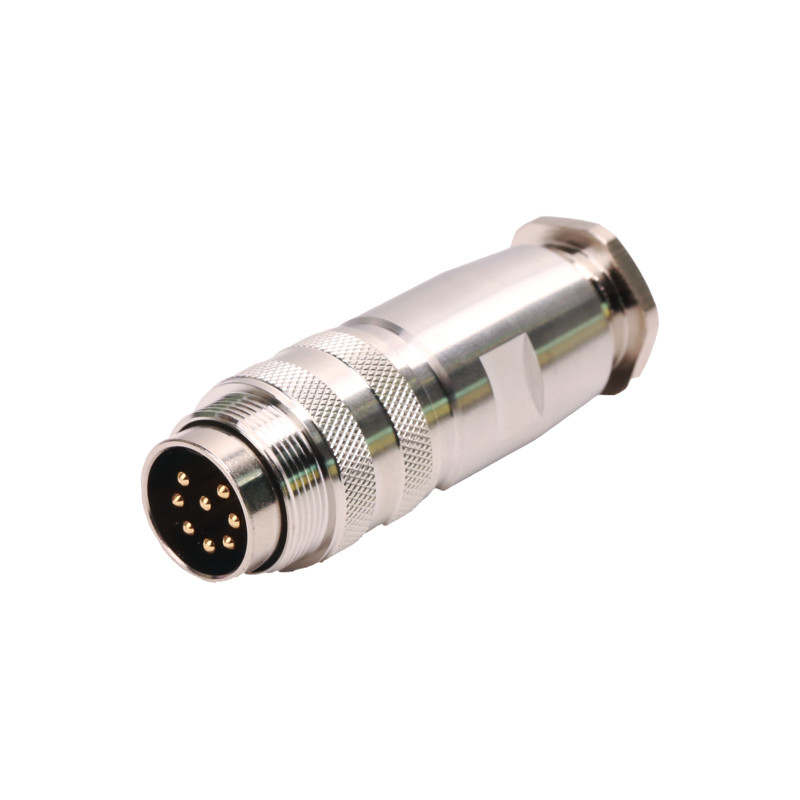

Copper PA66 Rigoal M16 Metal Field Connector 5a-7a Straight
100
MOQ
5.5
Price
Copper PA66 Rigoal M16 Metal Field Connector 5a-7a Straight
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP67
Model Number: M16 metal straight
High Light:

Rigoal M16 Metal Field Connector

,

PA66 M16 Metal Field Connector

,

7a Straight M16 Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Orientation: Straight
IP Rating: IP67
Type: Automation, Sensor Connector
Ambient Temperatu: -25C ~ + 85°C
Standard: IEC 61076-2-105
Mating Endurance: ≥500
Connector Insert: PA66+30%GF
Insulation Resistance: ≥100
Contact Resistance: ≤5
Contact Material: Copper(gold-plated)
Product Description

M16 metal Field Installable connector

M16 CONNECTORS

Our company has each kind of machine-finishing equipment. Various machining and test equipment form several lines can produce over 800,000 couples of connectors. Our main products include copper metal connectors,circular connectors,heavy duty connectors.waterproof connectors,5015 connectors and so on.



• Metal locking ring; screw locking according to DIN EN 60130-9 / IEC 60130-9

• Number of contacts: 2 – 8, 12 and 14 contacts
• Internal strain relief
• Good shielding effectiveness when mated and locked
• Male and female cable connectors
• Straight or right angled
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• With cable sleeve for max. cable diameter 6 mm, or
With cable glands for cable diameter 4 – 6 mm or 6 – 8 mm
• Male and female sockets
• Panel mount types for front or rear panel mounting
• Pcb mount types, straight or right angled
• With dip solder contacts of various contact lengths
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• Coloured back shells optional





M16 Straight female male 2pin 3pin 4pin 5pin 6pin 7pin 8pin 12pin 14pin 16pin 19pin 24pin rear panel mount connector



Electrical & Mechanical data M16 Series Panel Mount Connectors
Stardard IEC 61076-2-106
Rated current 5a-7a
Rated voltage 500v-1500v
Couplingg nut Brass with nikel palsted screw
Orientation straight
IP rating IP67
Connector contacts Brass with gold plated
Ambient temperature -25°C ~ + 85°C



About M16 connectors:

This series connectors are widely used in the aerospace, military, automotive, electric power, mechanical, automation, as well as the electrical service industry. We design and produce according to international and the U.S. military standard, our products can substitute European, US and Taiwan connectors, own the same quality.

image001(001)

• M16 CIRCULAR CONNECTOR WITH M16*1.0 SCREW LOCKING EQUIVALENT TO BINDER, PHOENIX, LUMBURGER AUTOMATION

• WATERPROOF RATING IS IP67, PROTECTED FROM DUST AND WATER DURING IMMERSION, RESISTANT TO MANY OILS AND CHEMICAL

image003(001) image005(001)
image007(001) image009(001)



Certifications




Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.



Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!

image022_




Our Service

1:Low cost with high quality products
2:Effective communication and rapid reponse
3:We test each item before shipping out ensure they are in good condition
4:Quality management according to IPC standard
