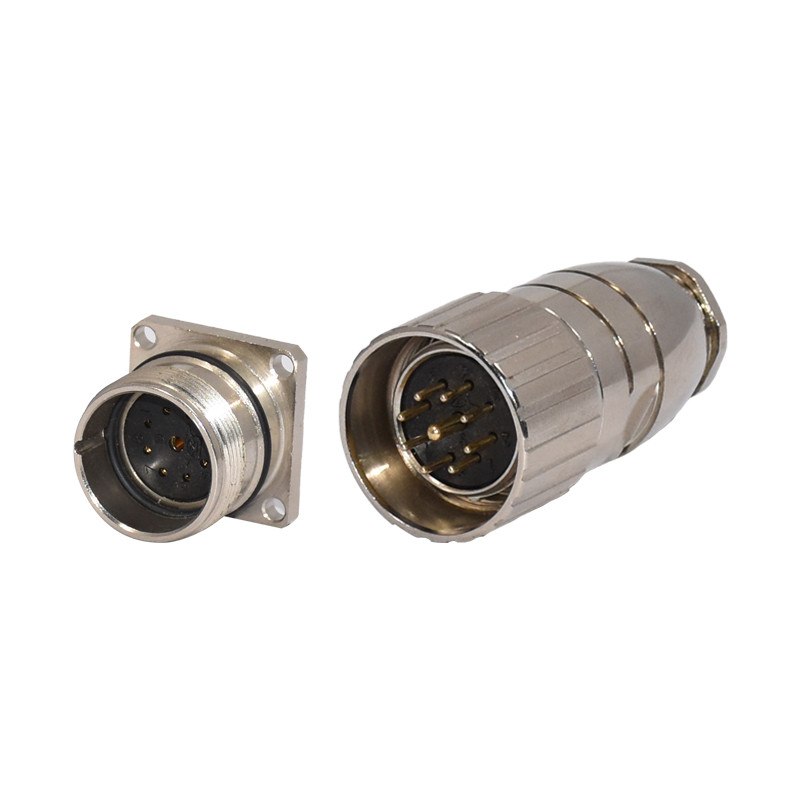

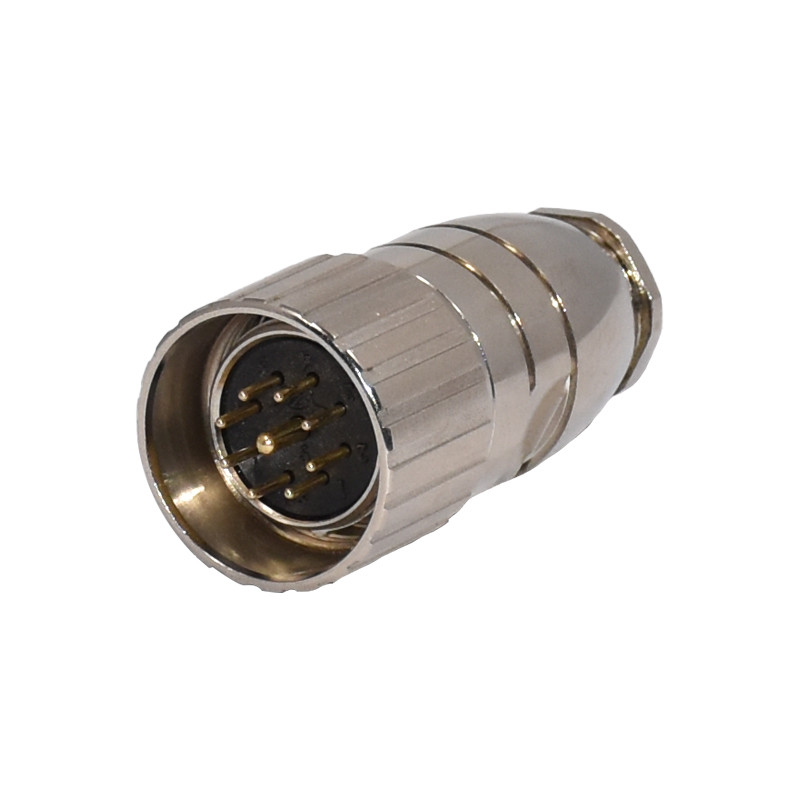

M23 molding type waterproof cable
M23 waterproof connector was specially developed for harsh operational enviroment; it ensures the operation stability under moisture, vibration and temperature change.

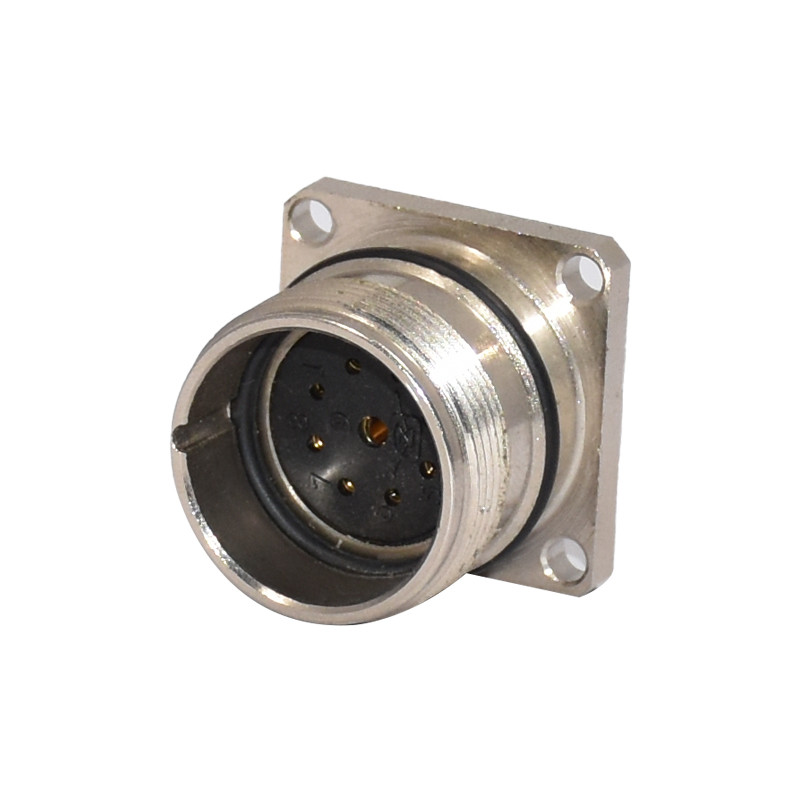

Circular M23 may be utilized in wide-ranging application, such as industrial automation machinery and medical equipment; due to the variations in electric current, customized pin configurations are available to the customer. Circular M23 with over molded cable type, assembly and pannel type, designed for primarily transferring both power and analog or digital signals; Metallic external shield combined with removable internal plastic component and terminals.
| Series | M23 |
| Coupling | Threaded Coupling |
| Terminal | Crimping |
| Number of Contacts | 6 / 7 / 9 / 12 / 17 / 19 Pin |
| Gender | Male / Female |
| Orientation | Straight |
| Termination | Soldering |
| Rated Current | 26A-600V / 28A-600V |
| Insulation resistance | 3000 |
| Temperature Range | -25°C ~ + 80°C |
| Contact material | Copper ( Silverplated / Gold ) |
 |
|
|
|
M23 series connectors provides a wide range of metric for small sensors and actuators. The Field attachable / mountable connector is also available for your choice. ingress protection is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.
Connector specification
Degree of protection IP67/IP68
3 4 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
The cable material have pur or pvc for choose.Length according to customer demand
Equivalent to Binder, Phoenix
UL/CE/RoHS/NMEA
Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Rated current:1A
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C
Certifications
