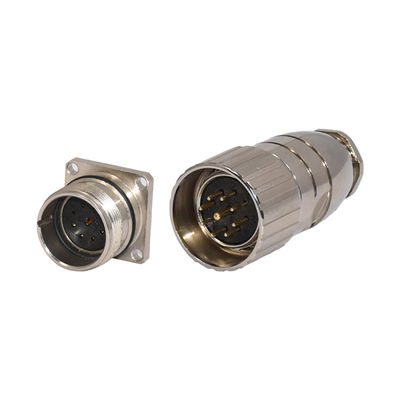

CuZn 10mm Cable M23 Male Waterproof Connector Straight Power Supply Connector
100
MOQ
5.5
Price
CuZn 10mm Cable M23 Male Waterproof Connector Straight Power Supply Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ,ROSH , IP67
Model Number: M23 straight metal
High Light:

10mm Cable M23 Male Waterproof Connector

,

CuZn M23 Male Waterproof Connector

,

Rigoal Straight Power Supply Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: M23 Connector
Application: Power ,sensor,automotive,ethernet,car Etc.
Gender: Male And Female
Connector Locking System: Screw
Cable Outlet: 6-10mm
Degree Of Protection: IP67
Mechanical Operation: > 50 Mating Cycles
Temperature Range: -20°C~125°C
Rated Voltage: 150V
Material Ot Contact: CuZn (Messing/brass)
Product Description

M23 male waterproof straight power supply base

Product parameter


Available Description:

Stainless steel screw is available

IP67/IP68, RoHS, REACH, UL certificate



Generally Description:

Connector Series: M16

Standard: IEC 61076-2-101

Coding: A

Pins: 6/7/8/9-----19pins

Gender:Male

Connector Design: Panel mount

Connector Locking System: Fix screw

Waterproof Rating: IP65/IP67

Ambient Temperature: -25°C~+125°C



Material:

Connector Body: PA66+GF

Contacts: Phosphorus copper with gold plated

Screw/Nut: Brass with nickel plated

Waterproof 0-ring: FKM

Glue: Black epoxy resin

Wire Jacket: PVC



Electrical data:

Rated Current: 30A

Rated Voltage: 630V

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥100MΩ

image003(001)

Product Introduction

Product Name:
Waterproof M23 Signal Square Flange Socket 9Pin Connector
Model number:M23-17P-S
Series:M23 Connector
Pin number:6 pin
Waterproof:IP67

image005(001) image007(001)


Our Services

To Be Your The Best Connection Expert
1) Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service

2) Provide free samples within 3 working days if it is normal product with existing tooling

3) Effective communication and rapid response

4) Early design-in capability, OEM, ODM are available

5) Globalization, localization of operation and management

6) 5 years quality assurance.



Certifications




Package&Shipping:

Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship way,which more converence, which we will choose!

image022_



FAQ

Who are we?
We are based in Guangdong, China, start from 2014, sell to Eastern Europe(15.00%), Southern Europe(15.00%), Western Europe(15.00%), Northern Europe(10.00%), Central America(10.00%), North America(10.00%), South America(9.00%), Mid East(4.00%), Eastern Asia(4.00%), Africa(3.00%), Southeast Asia(3.00%), Domestic Market(1.00%), South Asia(1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. Wwhat can you buy from us?
M8 waterproof connector,M12 sensor cable,M16 industrial connector,M23 waterproof connector,air plug

4. Why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
