150V 10mm Cable M23 Female Connector Rigoal Waterproof Straight Power

150V 10mm Cable M23 Female Connector Rigoal Waterproof Straight Power
Features Gallery Product Description Request A Quote
Model Number: M23 Connector
Application: Power ,sensor,automotive,ethernet,car Etc.
Gender: Male And Female
Connector Locking System: Screw
Cable Outlet: 6-10mm
Degree Of Protection: IP67
Mechanical Operation: > 50 Mating Cycles
Temperature Range: -20°C~125°C
Rated Voltage: 150V
Material Ot Contact: CuZn (Messing/brass)
High Light:

150V M23 Female Connector


10mm Cable M23 Female Connector


Rigoal Waterproof Straight Power Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ,Rohs , IP67
Model Number: M23 straight metal
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M23 female waterproof straight type power connector

Item value
Place of Origin China
Brand Name Rigoal connector(RG)
Model Number M23 923
Type Straight type socket
Application Industrial USES
Gender Female
Material of contact body PBT/PA66
Number of Cores Six Core
Model Number M23 connector
Application power ,sensor,automotive,ethernet,car etc.
Gender Male and female
Pins 6pin
Degree of protection IP67
Mechanical operation > 50 mating cycles
Rated voltage 150V
Material ot contact CuZn (Messing/brass)
Contact plating Au (Gold/gold)

Product Introduction

Product Name:

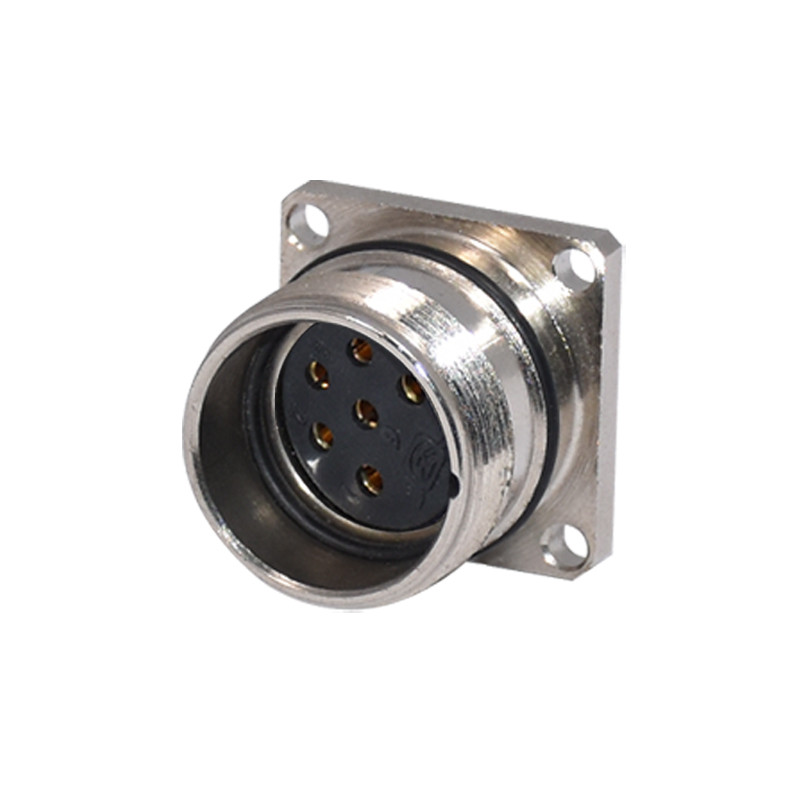

Waterproof M23 Signal Square Flange Socket 6Pin Connector
Model number:M23-17P-S
Series:M23 Connector
Pin number:6 pin

image003(001) image005(001)
