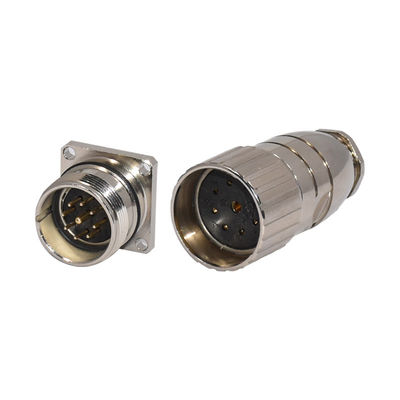

150V 10mm Cable M23 Assembled Connector CuZn Waterproof Female Signal Connector
100
MOQ
5.5
Price
150V 10mm Cable M23 Assembled Connector CuZn Waterproof Female Signal Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ,ROSH , IP67
Model Number: M23 straight metal
High Light:

10mm Cable M23 Assembled Connector

,

150V M23 Assembled Connector

,

CuZn Waterproof Female Signal Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: M23 Connector
Application: Power ,sensor,automotive,ethernet,car Etc.
Gender: Male And Female
Connector Locking System: Screw
Cable Outlet: 6-10mm
Degree Of Protection: IP67
Mechanical Operation: > 50 Mating Cycles
Temperature Range: -20°C~125°C
Rated Voltage: 150V
Material Ot Contact: CuZn (Messing/brass)
Product Description

M23 assembled waterproof female Signal connector




Specification

Shell material: Zinc alloys with nikelplate / PA66+GF20%

Insert material: PA66+GF20%

Contact material: copper(silverplated/gold)

Termination: sold

Temperature range:-40centigrade~+85centigrade

Coupling: Threaded coupling

Mating cycle: 500

Cable diameter: OD5mm~OD8mm



Description

1)M23 signal connector

2)IP67 UL ROSH CE approved

3)Equivalent to Binder ,Lumberg etc

4)OEM or ODM are available

5)6 9 12 16 19Pins are available

image003(001)

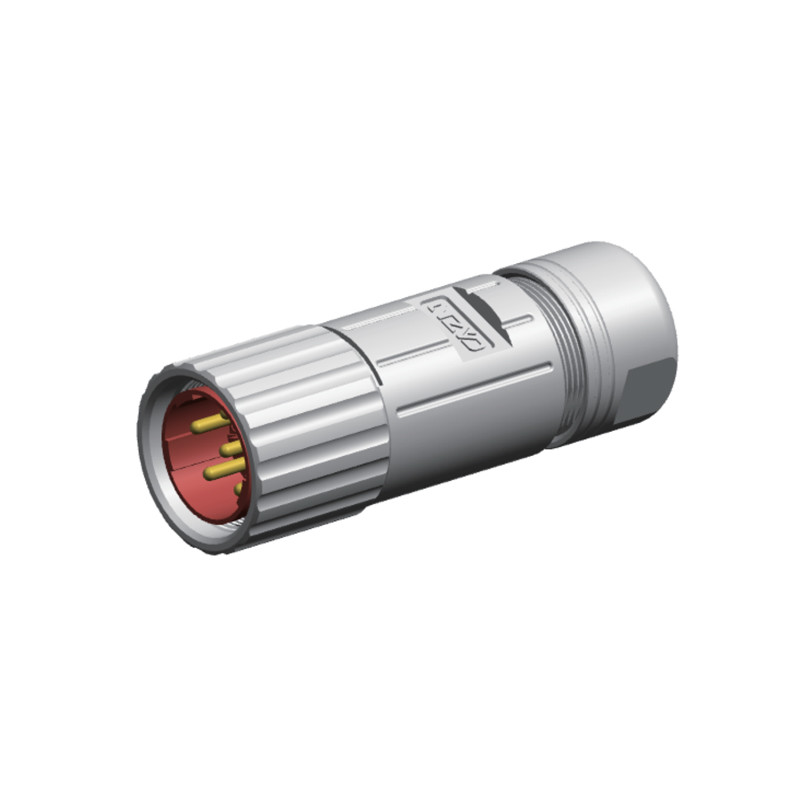

M23 Series Connector

IP rating: IP67 Coupling: Threaded

No. ofcontact:

1. for power: 6 , 8 Pin 2. for sinal: 9 , 12 , 17 , 19 Pin

Advantages:

1. High degree of protection IP67, safe to use on site 2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life 3. Anti-vibration locking screw design 4. Support samples, retail and bulk orders.

image005(001) image007(001)

M23 series connectors provides a wide range of metric for small sensors and actuators. The Field attachable / mountable connector is also available for your choice. ingress protection is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.



Certifications




Package&Shipping:

Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship way, which more converence, which we will choose!

image022_



FAQ

1. Who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(15.00%),Southern Europe(15.00%),Western Europe(15.00%),Northern Europe(10.00%),Central America(10.00%),North America(10.00%),South America(9.00%),Mid East(4.00%),Eastern Asia(4.00%),Africa(3.00%),Southeast Asia(3.00%),Domestic Market(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
M8 waterproof connector,M12 sensor cable,M16 industrial connector,M23 waterproof connector,air plug.

4. Why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
