M23 Straight CuZn Waterproof Female Connector PA66 Threaded Coupling
100
MOQ
5.5
Price
M23 Straight CuZn Waterproof Female Connector PA66 Threaded Coupling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ,ROSH , IP67
Model Number: M23 straight metal
High Light:

M23 Straight Waterproof Female Connector

,

CuZn Waterproof Female Connector

,

PA66 M23 Female Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: M23 Connector
Application: Power ,sensor,automotive,ethernet,car Etc.
Gender: Male And Female
Connector Locking System: Screw
Cable Outlet: 6-10 Mm
Degree Of Protection: IP67
Mechanical Operation: > 50 Mating Cycles
Temperature Range: -20°C~125°C
Rated Voltage: 150V
Material Ot Contact: CuZn (Messing/brass)
Product Description

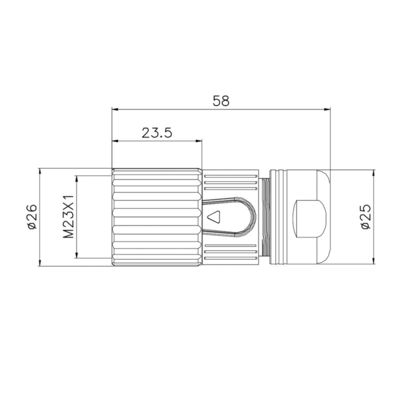

M23 straight waterproof female Power connector

M23 series features sensor and actuator connectors with a locking thread for electronics automation, process control, and commercial electronics. We offer many different cable connectors, panel mounted receptacles, field attachable/installable connectors and various accessories. Our connectors have industry-standard, for both screw-locking and quick-locking styles.

image001(001)

Product introduction

Product Name:M23 923 power female male straight metal plug connector

P/N:923G-A-S(P)

Core number:6pin 8pin
Authentication:CE,RoHS
Voltage/Ampere(IEC): see below

image003(001) image005(001)

1,Mateial and specifications:

Coupling:Threaded coupling

Shell material:Zinc alloy with nikelplate

Insert material:PA66+GF20%

Contact material:copper(silverplated/gold)

Termination:Solder

Mating cycle:500

Cable diameter:-40℃ ~ +85℃

Cable diameter:≤ φ8.0mm ~ ≤ φ14mm

2,Technology parameter

NO.of contacts:6pin,8pin

Rated current/voltage:28A/600V

Operation limit voltage(AC.V.rms):800

Withstanding voltage(AC.V.rms) l minute:2500-4000

Insulation resistance(MΩ MIN.) at DC 500V:3000

Contact resistance (MΩ MAX.) AT DC 1A:3

Solder cup mouth aperture φ(mm):2

Solder inter diameter φ(mm):1*4-2*6



Coupling Threaded coupling
Terminal Crimping
Number of Contacts 6 Pin
Gender Female
Orientation Straight
Termination Soldering
Rated Current 26A-600V / 28A-600V
Insulation resistance 3000
Temperature Range -25°C ~ + 80°C
Contact material Copper(Silverplated/Gold)



Certifications
