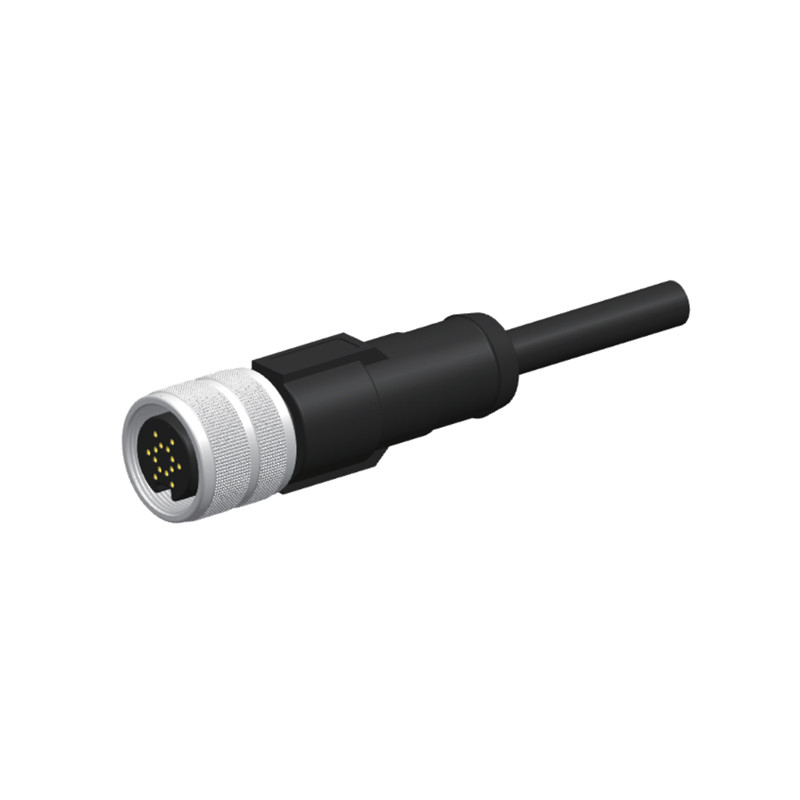

Straight PA66 M16 Molding Power Waterproof Connector 9.2mm Cable

Straight PA66 M16 Molding Power Waterproof Connector 9.2mm Cable
Features Gallery Product Description Request A Quote
Orientation: Straight
IP Rating: IP67
Type: Automation, Sensor Connector
Ambient Temperatu: -25C ~ + 85°C
Standard: IEC 61076-2-105
Mating Endurance: ≥500
Connector Insert: PA66+30%GF
Insulation Resistance: ≥100
Contact Resistance: ≤5
Contact Material: Copper(gold-plated)
High Light:

M16 Molding Power Waterproof Connector


PA66 Molding Power Waterproof Connector


9.2mm Cable M16 Screw Assembly Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , Rohs , IP68
Model Number: Molding cable
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

Molding power waterproof connector cable

Connecting mode male to female ,screw type
Protection level IP68
Size M16
Color Black
Contact diameter×Qty 2pin 3pin 4pin 5pin 6pin 8pin 12pin
Current rating(A) 3A/8A/15A/15A+3A
Temperature rating -40°C~105°C
Cable Max OD 4.5-9.2mm
Copper wire copper
Material Nylon
Shell&insulated parts Nylon
Main characteristics
Sealed against dust and fluid (IP67,68)
Vibration resistance,impact resistance,stretching resistance
Application industries
Electrical machines


Product features:

1. Waterproof, moisture-proof, rain proof, sun proof and corrosion proof.

2. Flame retardant, anti-oxidation, environmental protection (all products come from green production line).

3. Improve the production process: the connector simplifies the assembly process of electronic products, and also simplifies the mass production process.

4. Easy maintenance: in case of failure, there is no need to clip off the cable line, electric plastic sleeve, etc., just need to loosen the two ends of the waterproof connector, which is very convenient for the maintenance of LED, solar energy, geothermal and other waterproof products.

5. Improve design flexibility: the use of connectors allows engineers greater flexibility in designing and integrating new products, as well as in composing systems with components Field of application All products are made of environmental protection and high temperature resistant materials, which meet the ROHS standard (provide national certification CCC / CE / UL / other), and can provide formal environmental protection information. The appearance of the products is bright, and there is no adulteration. Can customize all kinds of special specifications waterproof line!



1. It is widely suitable for outdoor application connection of various LED products, such as LED light bar, LED spotlight lighting, led wall washing landscape lighting, led billboard lighting, LED tunnel lighting, led floodlight lighting, LED street lighting and LED outdoor display, etc.

2. It is widely used in coastal, river, lake or underwater engineering, mining engineering, underground engineering, solar water heater, solar wind power generation, food industry, all kinds of mechanical equipment, aviation, aerospace, national defense and other communication and power fields.

image001(001) image003(001)

Our Advantages

1. The fast response of your inquiry.

2. We provide OEM, ODM service, the details of the product can be made as your requirement.

3. Strong technical force and excellent sales team to provide all-round service before sales and after sales.

4. Use selected raw materials, reliable quality and competitive price.

5. Over 10 years professional manufacturer experience of assembly connect cable in China.

6. Our factory have are ISO9001certified.

7. Complete automatic equipment, high production efficiency and punctual.

8. Each of our products has been 100% instrumentally-tested to ensure the quality and function.

9. Small orders are available.

10. Our products have extensive use and enjoy a wide market all over the world.

11. For the sake of customers, strive to achieve a win-win situation, hope to establish a long-term cooperative relationship





The connector products are widely used in bus components, ethernet, solenoid valvees, press stiches, motors-control, protoelectric barries, flow monitoring devices, proximity switches, and sensors in hydraulic, pneumatic and automation industries.



1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.

We can according to customer request choose different ship way,which more converence ,which we will choose!
