19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector

100
MOQ
negotiable
Price
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Power
Pins: 19P
Waterproof Rate: Ip67/68
Rated Current: 16*8A/3*10A
Insert Material: PA66
Pin: 6pin,8pin,12pin,14pin,19pin
Type: Waterproof Connector
Rated Voltage: 150V
Mating Cycles: >500 Times
Temperature Range: -40℃ To +125℃
High Light:

IP67 M23 Female Straight Connector

,

19P M23 Female Straight Connector

,

PA66 Screw Assembly Shield Connector
Basic Infomation
Place of Origin: Shen zhen，China
Brand Name: RIGOAL
Certification: CE，ROHS，ISO
Model Number: M23 connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

IP67 M23 Female Straight Metal 6pin 9pin 12pin 16pin 19pin Screw Assembly Shield Connector 623



Product Description

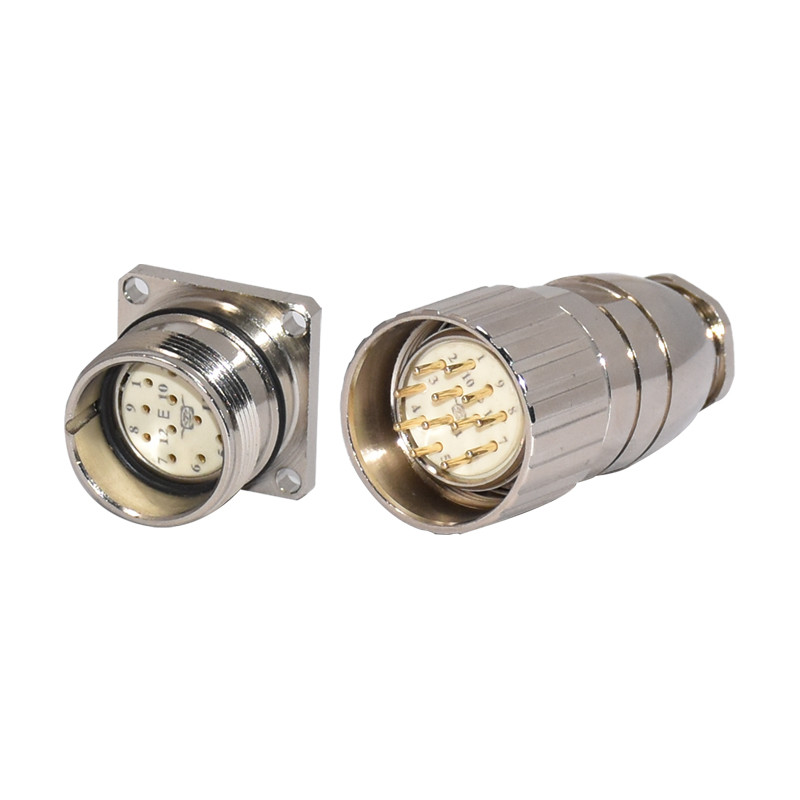

19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 0
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 1
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 2



M23 waterproof connector was specially developed for harsh operational enviroment; it ensures the operation stability under
moisture, vibration and temperature change.



Circular M23 connector may be utilized in wide-ranging application, such as industrial automation machinery and medical equipment;
due to
the variations in electric current, customized pin configurations are available to the customer. Circular M23 with over molded
cable type, assembly and pannel type, designed for primarily transferring both power and analog or digital signals; Metallic
external shield combined with removable internal plastic component and terminals.
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 3
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 4
Specification
item
value
Place of Origin
China

Guangdong
Brand Name
RIGOAL
Model Number
M23 assembly connector
Pins
5P, 12p, 8P, 2P, 6P, 9, 17
Application
Power
Pins
19P
Waterproof rate
ip67/68
Rated Current
16*8A/3*10A
Insert Material
PA66
Pin
6pin,8pin,12pin,14pin,19pin
Type
Waterproof connector
Rated Voltage
150V
Mating cycles
>500 times
Temperature range
-40℃ to +125℃
Packing & Delivery
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 5
19P IP67 M23 Female Straight Connector PA66 Screw Assembly Shield Connector 6
M8 molded waterproof cable have two size packaging 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Tag:

Rohs M23 Connector

High Power M23 Connector

300V M23 Connector
