150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Power
Pins: 12pin
Waterproof Rate: Ip67/68
Rated Current: 16*8A/3*10A
Insert Material: PA66
Pin: 6pin,8pin,12pin,14pin,19pin
Type: Waterproof Connector
Rated Voltage: 150V
Mating Cycles: >500 Times
Temperature Range: -40℃ To +125℃
High Light:

M23 12p Solenoid Valve Connector

,

150V M23 Solenoid Valve Connector

,

PA66 Straight Assembly Signal Connectors

Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: M23 connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M23 12pin Female Straight Assembly Signal Connectors

Product Description

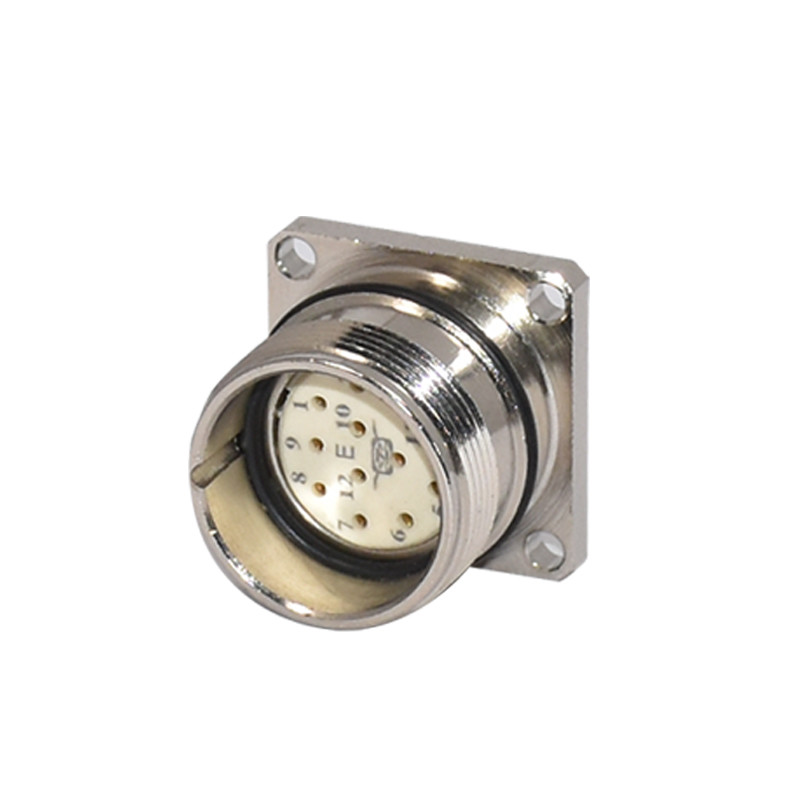

150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors 0
150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors 1
150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors 2



M23 waterproof connector was specially developed for harsh operational enviroment; it ensures the operation stability under
moisture, vibration and temperature change.



Circular M23 connector may be utilized in wide-ranging application, such as industrial automation machinery and medical equipment;
due to
the variations in electric current, customized pin configurations are available to the customer. Circular M23 with over molded
cable type, assembly and pannel type, designed for primarily transferring both power and analog or digital signals; Metallic
external shield combined with removable internal plastic component and terminals.
150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors 3
150V M23 12p Solenoid Valve Connector PA66 Straight Assembly Signal Connectors 4
Specification
item
value
Place of Origin
China

Guangdong
Brand Name
RIGOAL
Model Number
M23 assembly connector
Pins
5P, 12p, 8P, 2P, 6P, 9, 17
Application
Power
