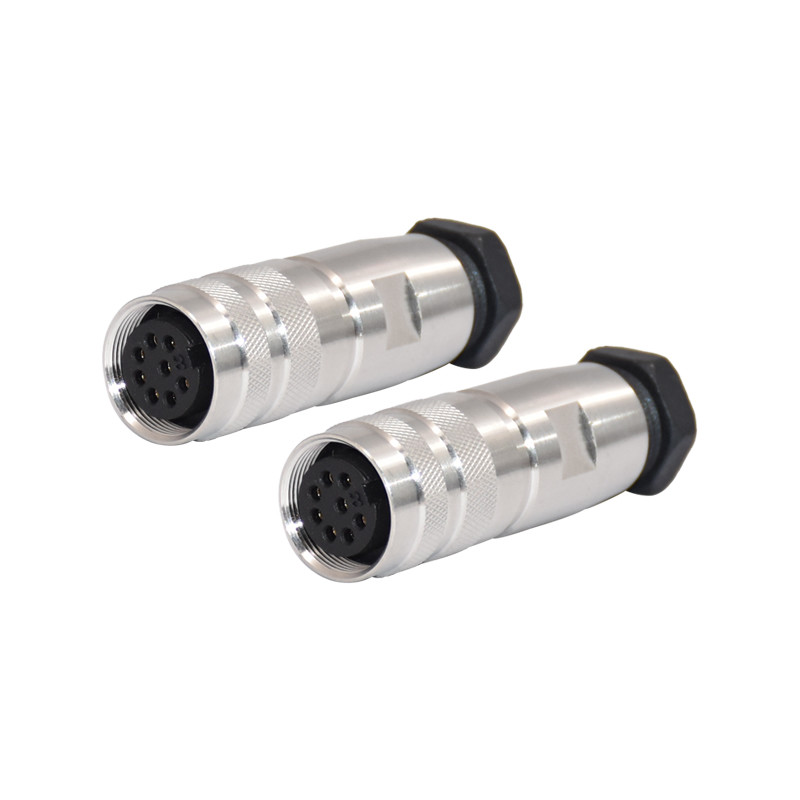

8 Pin Metal Sensor M16 Circular Connector PA66 GF Rugged Metal

100
MOQ
negotiable
Price
8 Pin Metal Sensor M16 Circular Connector PA66 GF Rugged Metal
Features Gallery Product Description Request A Quote
Features
Specifications
Orientation: Straight
IP Rating: IP67
Type: Automation, Sensor Connector
Ambient Temperatu: -25C ~ + 85°C
Standard: IEC 61076-2-105
Mating Endurance: ≥500
Connector Insert: PA66+30%GF
Insulation Resistance: ≥100
Contact Resistance: ≤5
Contact Material: Copper(gold-plated)
High Light:

Metal Sensor M16 Circular Connector

,

PA66 GF M16 Circular Connector

,

Rugged Metal M16 DIN Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , Rohs , IP68
Model Number: Straight type metal
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M16 8pin metal sensor connector

M16 CONNECTORS
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust M16 DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

M16 series connector equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
DIN EN 61076-2-106

Electrical & Mechanical data M16 Din circular connector
Stardard IEC 61076-2-106
Rated current 5a
Rated voltage 500v
Couplingg nut Brass with nikel palsted screw
Orientation straight
IP rating IP67
Connector contacts Brass with gold plated
Ambient temperature -25°C ~ + 95°C



M16 (5).jpg

female

M16 (6).jpg

male and female


male
