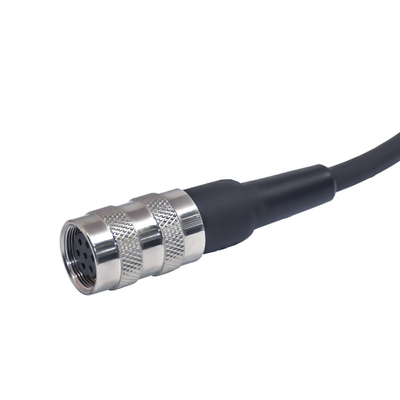

m16 cable connector
| General Infomation | |||
| Standard | IEC 61076-2-106 | Insulation Resistance | ≥100MΩ |
| Ambient Temperature | - 40℃~+70℃/- 25℃~+70℃ | Contact Resistance | ≤5mΩ |
| Connector Insert | BPT | Shielding | unvailable |
| Connector Contacts | Brass with Gold Plated | Seal/O-ring | NBR/FKM |
| PCoupling Nut/Screw | PA+GF | Mating Endurance | >500 cycles |
| IP Rating | IP67/68/IP69K in locked condition | Certificate | ULS/CE/ROHS/IP67/REACH/IP68 |
Description
Degree of protection IP67
2 3 4 5 5A 6 7 8 12 14 16 19 24 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
The cable material have PVC or PUR,length according to customer demand
Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Rated current::7A
Contact resistance:≤5mΩ
Ambient temperature:-25°C~+85°C

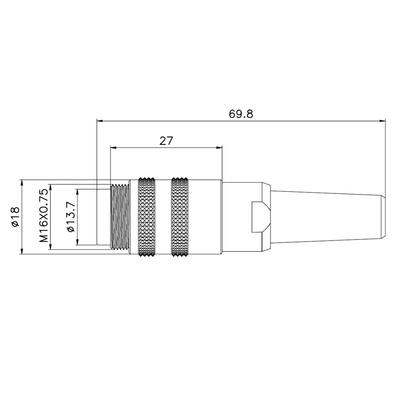

Connector Specification
Polarity:2pin 3pins, 4pins,5pins,6pins,8pins 12pin 14pin 16pin 19pin 24pin
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated
Degree of protection:IP67 in locked condition
Packaging
1. Our general packing:erery pcs in one samll PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.samll size:12mm*12mm. Carton size:46*30*30cm
2. According to customer request.
