Front Rear M16 Circular Connector 2 - 8 Pin Panel Mount Electrical Waterproof Connector
10 pieces
MOQ
$3.15-$4.88/piece
Price
Front Rear M16 Circular Connector 2 - 8 Pin Panel Mount Electrical Waterproof Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE;ISO9001;IP68;ROHS
Model Number: M16 926
High Light:

Front Rear M16 Circular Connector

,

TPU M16 Circular Connector

,

Panel Mount M16 waterproof connector

Payment & Shipping Terms
Packaging Details: First in a PE bag,then in a carton
Delivery Time: 1-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Specifications
Pin: 2 3 4 5 6 7 8 12 14 16 19 24 Pin
Type: Panel Mount
Rated Current: 7A For 2 3 Pin;6A For 4 5 Pin;5A For 6 7 8 12 Pin;3A For 14 16 19 Pin;1A For 24 Pin
Rated Voltage: 250V For 2 3 4 5 6 Pin;125V For 7 8 Pin;60V For 12 14 16 19 24 Pin
Temperature Range: -20°C~80°C
Degree Of Protection: IP67/IP68
Connector Locking System: Screw
Mechanical Operation: >500 Mating Cycles
Contact Resiatance: ≤5mΩ
Material Of Connector: CuZn,TPU
Product Description

M16 8pin male front panel mount straight waterproof connector,solder type

Product pin:2pin/3(DIN)pin/4pin/5pin/5(Stereo)pin/6(DIN)pin/7pin/7(DIN)pin/8(DIN)pin/12pin

                   14pin/14(DIN)pin/16pin/19pin/24pin

Molded & Panel mount & Assembly

Shielded available

Custom length

PVC/PUR or custom cable material

Rear/Front/Flange panel mount

Screw/Solded/PCB/With pigtail contact way

IP67/IP68

IEC Standard



M16 wall panel mount waterproof connector mainly applied in sensors, industrial equipment,

transportation facilities, medical devices, LED displays, outdoor advertisements,

communication devices,wind energy devices, vessel industrial and car electronics industry and so on.

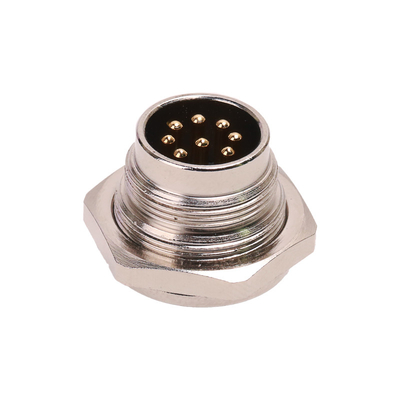

Front Rear M16 Circular Connector 2 - 8 Pin Panel Mount Electrical Waterproof Connector 0

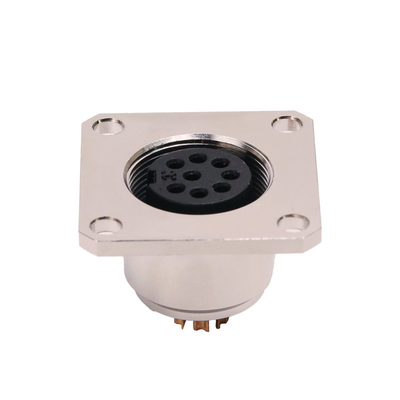

Front Rear M16 Circular Connector 2 - 8 Pin Panel Mount Electrical Waterproof Connector 1

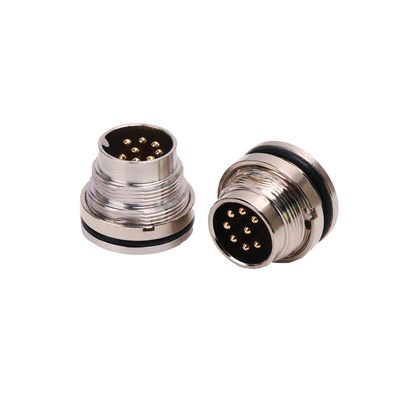

Front Rear M16 Circular Connector 2 - 8 Pin Panel Mount Electrical Waterproof Connector 2

Packaging

1.Our general packing:every pcs in one small PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.Carton size:46*30*30cm
2.According to customer request.

Shipping

We can according to customer request choose different transport way,which more converence ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.





Contact us any time if you have custom requirement!



​​
