2 - 8 Pin Solder M16 Waterproof Connector Metal Assembly Shielded Male Female Plug
10 pieces
MOQ
$3.5-$6.08/piece
Price
2 - 8 Pin Solder M16 Waterproof Connector Metal Assembly Shielded Male Female Plug
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE;ISO9001;IP68;ROHS
Model Number: M16 1016
High Light:

Shielded M16 waterproof connector

,

Metal Assembly M16 waterproof connector

,

M16 solder waterproof connector

Payment & Shipping Terms
Packaging Details: First in a PE bag,then in a carton
Delivery Time: 1-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Specifications
Pin: 2 3 4 5 6 7 8 12 14 16 19 24 Pins
Type: Assembly
Rated Current: 7A For 2 3 Pin;6A For 4 5 Pin;5A For 6 7 8 12 Pin;3A For 14 16 19 Pin;1A For 24 Pin
Rated Voltage: 250V For 2 3 4 5 6 Pin;125V For 7 8 Pin;60V For 12 14 16 19 24 Pin
Contact Plating: Au(gold Plating)
Degree Of Protection: IP67/IP68
Connector Locking System: Solder
Mechanical Operation: >500 Mating Cycles
Contact Resiatance: ≤5mΩ
Outlet: Suitable OD 4-8mm Cable
Product Description

* M16 4pin male female assembly connector,straight,plastic PG9 outlet,solder type

* Product pole:

 2pole/3(DIN)pole/4pole/5pole/5(Stereo)pole/6(DIN)pole/7pole/7(DIN)pole/8(DIN)pole/12pole14pole/

14(DIN)pole/16pole/19pole/24pole

* Assembly & Panel mount & Molded

* Shielded available

* PUR/PVC or custom cable material

* Front/Rear/Flange panel mount

* Solded/PCB/Screw/With pigtail contact way

* Custom length

* IP67/IP68

* IEC Standard



M16 waterproof assembly connector mainly applied in medical devices, LED displays, sensors, industrial equipment, transportation facilities, outdoor advertisements,vessel industrial and car electronics industry,communication devices,wind energy devices and so on.





We are a company with more than 8 years experience in producing connectors, and we have our own factory.
We had a turnover of 40 million last year.
We have CE/ROHS/IP68/ISO9001 certificates.

Our main products include M5,M8,M9,M12,M16,M23,7/8'',USB,DSUB,RJ45,SP series,K series,GX series,Solenoid valve.
If you choose us, we can provide you with high quality products and quality services, we can also become your long-term partner.

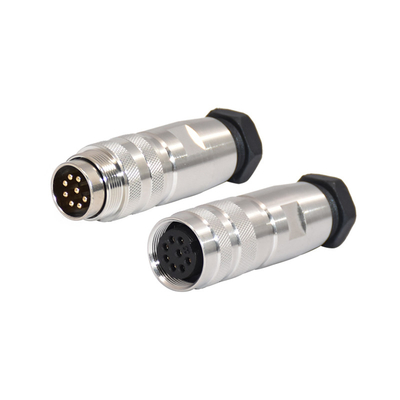

2 - 8 Pin Solder M16 Waterproof Connector Metal Assembly Shielded Male Female Plug 0

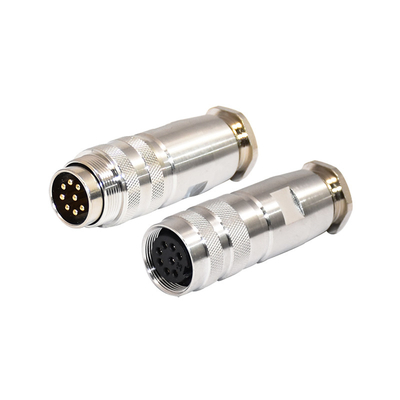

2 - 8 Pin Solder M16 Waterproof Connector Metal Assembly Shielded Male Female Plug 1

2 - 8 Pin Solder M16 Waterproof Connector Metal Assembly Shielded Male Female Plug 2









Packaging

1.Our general packing:every pcs in one small PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.Carton size:46*30*30cm
2.According to customer request.

Shipping

We can according to customer request choose different transport way,which more converence ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.







If you have any need for M16,pls feel free to contact us!



​​
