Rear Front M16 Waterproof Connector Wall Panel Mount 2 - 12 Pin Male Female Connector
10 pieces
MOQ
$2.3-$3.9/piece
Price
Rear Front M16 Waterproof Connector Wall Panel Mount 2 - 12 Pin Male Female Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE;ISO9001;IP68;ROHS
Model Number: M16 1636
High Light:

Rear Front M16 waterproof connector

,

Panel Mount M16 waterproof connector

,

Male Female M16 Circular Connector

Payment & Shipping Terms
Packaging Details: First in a PE bag,then in a carton
Delivery Time: 1-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Specifications
Pin: 2 3 4 5 6 7 8 12 14 16 19 24 Pins
Contact Plating: Au(gold Plating)
Rated Current: 7A For 2 3 Pin;6A For 4 5 Pin;5A For 6 7 8 12 Pin;3A For 14 16 19 Pin;1A For 24 Pin
Rated Voltage: 250V For 2 3 4 5 6 Pin;125V For 7 8 Pin;60V For 12 14 16 19 24 Pin
Material Of Housing: Zinc Diecasting Nickel Plated
Degree Of Protection: IP67/IP68
Connector Locking System: Solder
Mechanical Operation: >500 Mating Cycles
Contact Resiatance: ≤5mΩ
Material Of Connector: CuZn,TPU
Product Description

IP68 M16 male 4 pin front solder wall panel mount straight circular waterproof connectors



M16 wall panel mount waterproof connector mainly applied in sensors, medical devices,

LED displays, outdoor advertisements,communication devices,wind energy devices,industrial equipment,transportation facilities, vessel industrial and car electronics industry and so on.



Product pin:2pin/3(DIN)pin/4pin/5pin/5(Stereo)pin/6(DIN)pin/7pin/7(DIN)pin/8(DIN)pin/12pin

                   14pin/14(DIN)pin/16pin/19pin/24pin

Rear/Front/Flange panel mount

Screw/Solded/PCB/With pigtail contact way

IP67/IP68

IEC Standard

Molded cable & Panel mount & Assembly

Shielded/Unshielded

Custom length

PVC/PUR or custom cable material

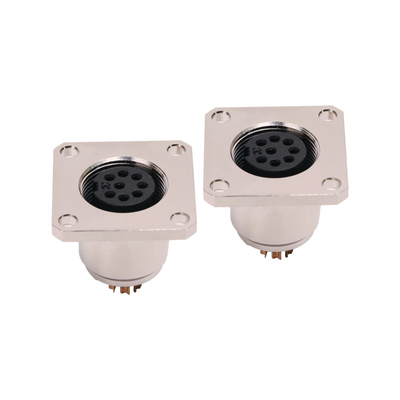

Rear Front M16 Waterproof Connector Wall Panel Mount 2 - 12 Pin Male Female Connector 0

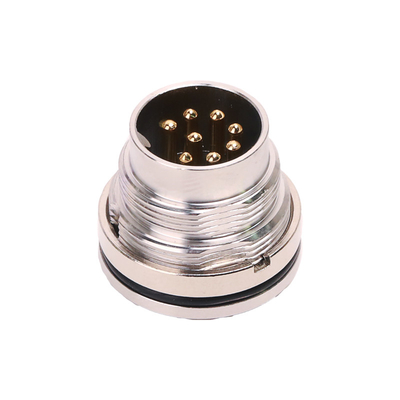

Rear Front M16 Waterproof Connector Wall Panel Mount 2 - 12 Pin Male Female Connector 1

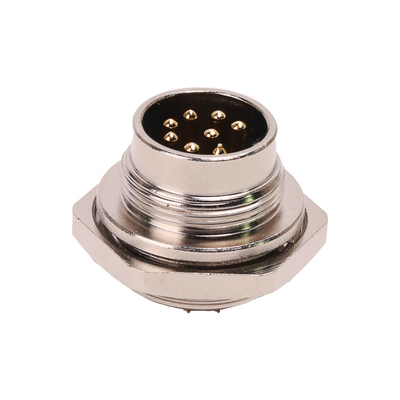

Rear Front M16 Waterproof Connector Wall Panel Mount 2 - 12 Pin Male Female Connector 2





Packaging

1.Our general packing:every pcs of M16 panel mount connector in one small PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.Carton size:46*30*30cm
2.According to customer request.

Shipping
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.

We can according to customer request choose different transport way,which more converence ,which we will choose!





Pls contact us any time if any of them can catch your eye!



​​
